AC Standing Cabinets

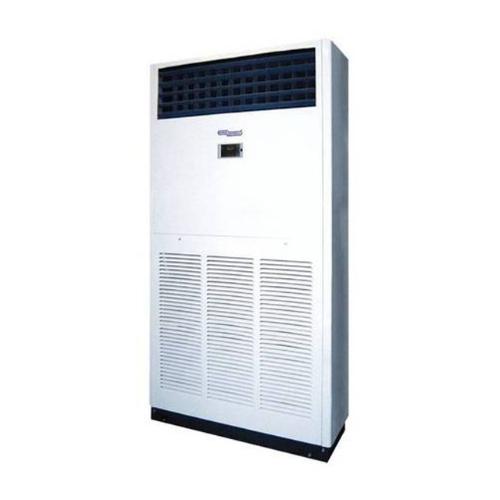

AC Standing Cabinets, also known as floor-standing air conditioners or cabinet AC units, are high-capacity air conditioning systems designed for large spaces that require efficient cooling but may not support ceiling or wall-mounted systems. These units are commonly used in commercial, industrial, and institutional settings. A standing cabinet AC is a self-contained, upright air conditioning unit that rests directly on the floor. It includes internal components for cooling, air circulation, and temperature control, and may include heating and dehumidification features as well.
Incase of Queries, Feel Free To Reach Us At 042-35153686
Typical Applications
- Large offices, conference halls, restaurants
- Data centers and server rooms
- Retail stores, showrooms, lobbies
- Warehouses, factories, and workshops
Key Features
Feature | Description |
Cooling Capacity | Ranges from 2 Ton to 10+ Tons (24,000 to 120,000 BTU/hr) |
Airflow Direction | Usually vertical discharge; adjustable louvers |
Compressor Type | Rotary or scroll; inverter or non-inverter |
Controls | Digital panel or remote control, optional BMS integration |
Air Filters | Washable or replaceable dust filters |
Installation | Floor-mounted; requires ducting or direct air throw |
Power Supply | Typically 220–240V (for smaller units), 380–415V 3-phase (for larger units) |
Cooling Performance
Capacity | Room Size (approx.) | Usage Example |
3–5 Tons | 500–1,200 sq. ft | Restaurants, large offices |
5–10 Tons | 1,200–2,500+ sq. ft | Server rooms, event halls |
10+ Tons | 2,500+ sq. ft | Factories, retail showrooms |
Optional Functions
- Heating (heat pump or resistance)
- Dehumidification
- Air purification (HEPA, ionizers)
- Wi-Fi or smart control compatibility
- Automatic swing or multi-directional airflow
Advantages
- Easy to install compared to central systems
- Portable or relocatable (depending on model)
- High air volume and fast cooling
- No ceiling space required
